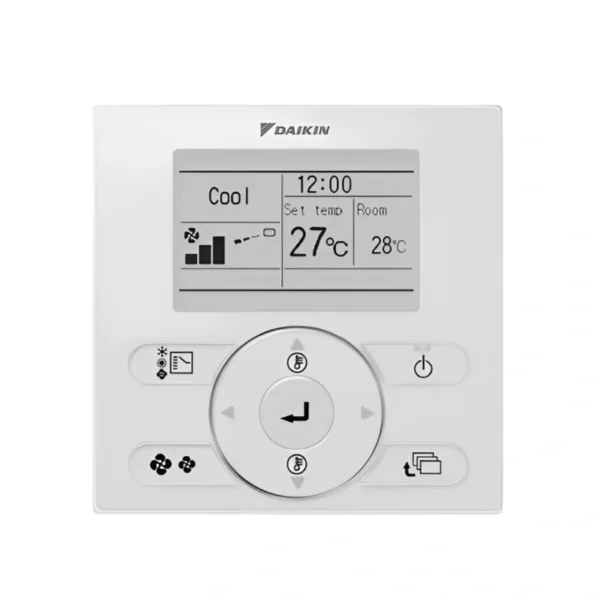

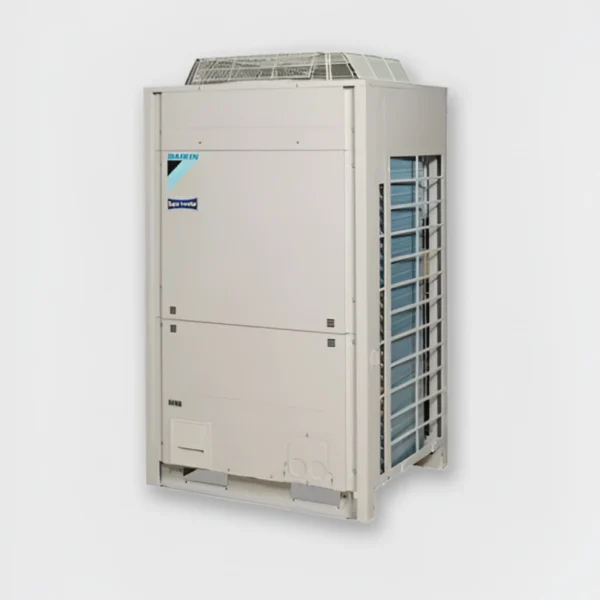

Daikin Premium 20.0kW FDYQ200LC-TY Ducted 3 Phase AC System – FDYQ200LCV1/RZYQ8TY1 Inc Controller
$12,336.61
- Description
- Additional information
- Reviews (0)
Description
| INDOOR UNIT | FDYQ200LCV1 | |
|---|---|---|
| OUTDOOR UNIT | RZYQ8TY1 | |
| Rated Capacity | Cool (kW) | 20.0 |
| Heat (kW) | 22.4 | |
| Capacity Range | Cool (kW) | 10.0-22.4 |
| Heat (kW) | 11.2-25.0 | |
| Power Input (Rated) | Cool (kW) | 6.08 |
| Heat (kW) | 6.17 | |
| E.E.R/C.O.P | C/H | 3.29/3.63 |
| TCSPF (Residential) | Hot/Average/Cold | 3.87/3.35/3.32 |
| HSPF (Residential) | Hot/Average/Cold | 3.42/3.35/3.20 |
| Airflow Rate (Nominal/Max) | I/s | 1200/1300 |
| Indoor Sound Level (H) @1.5m | dBA (C/H) | 44.0/44.0 |
| Piping Length | m | 150 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 470x1400x997 |
| Outdoor (mm) | 1657x930x765 | |
| Weight | Indoor (kg) | 79 |
| Outdoor (kg) | 192 | |
| Power Supply | V/Hz | 3 Phase, 380-415V, 50Hz |
| Compressor Type | Hermetically Sealed Scroll Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Brazed) |
| Gas (mm) | 19.1 (Brazed) | |
| Drain (mm) | BSP 3/4 inch Internal Thread | |
| Supply Air Opening | mm (HxW, Flange) | 350×1118 |
| Return Air Opening | mm | 393×1118 (Flange) |
| Outdoor Operating Range | Cool (°CDB) | -5 to 49 |
| Heat (°CWB) | -20 to 16 | |
| EPA Sound Power Level | dBA | – |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 56/56 |
Additional information
| Brand | Daikin |
|---|
